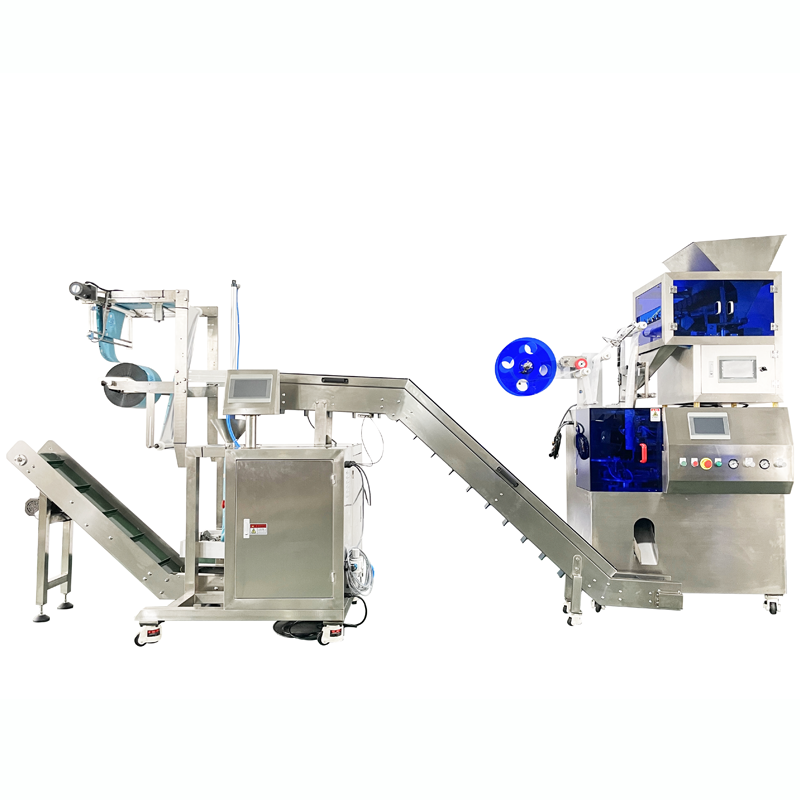

Quantitative weighing type pyramid tea bag with Envelope packaging machine model:TPM-6W

This pyramid tea bag with Envelope packaging machine is suitable for packaging all kinds of tea. There are two packaging methods: pyramid tea bag and four-sided bag. From tea bag to outer bag, one machine can complete it.

product details

product description

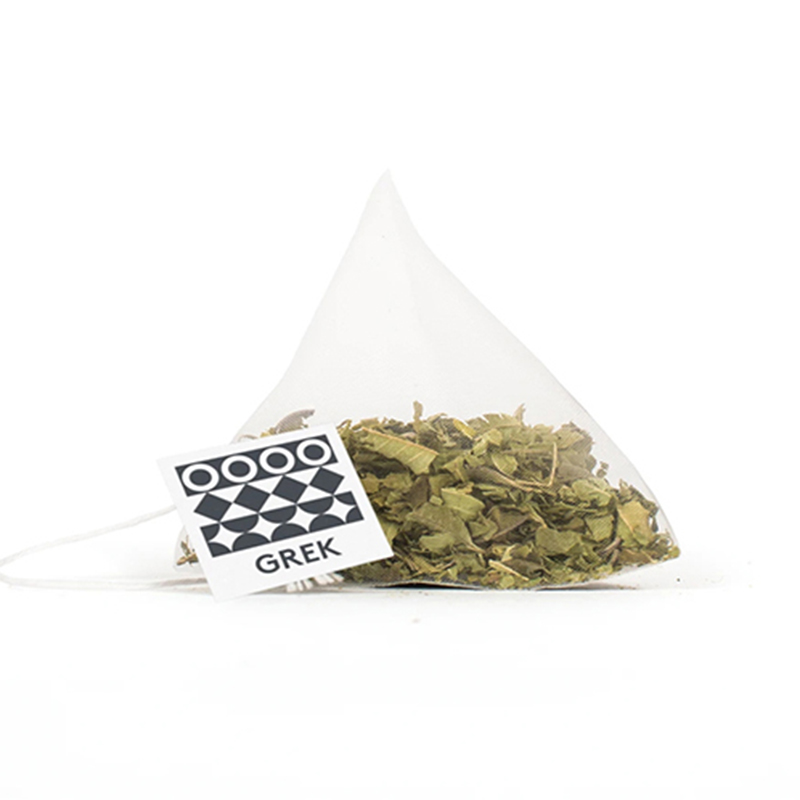

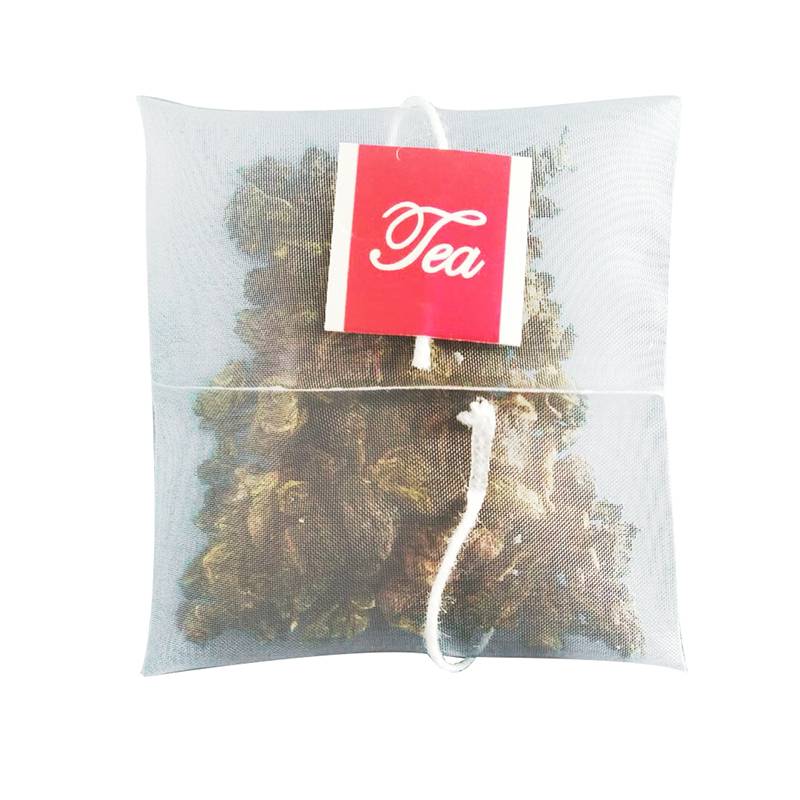

1. Ultrasonic seamless sealing and cutting to produce a triangular bag with beautiful bag shape and firm sealing

2. Automatic quantitative measurement method to facilitate the replacement of packaging specifications and types

3. Using PLC programmable control, touch screen operation, use more convenient, easier operation

4. pneumatic components, Schneider low-voltage appliances, improve the long-term stability of the equipment

5. Production capacity: inner bag 2400-3000 bag/hour,envelop bag 1800-2400 bag/hour

6. Triangular three-dimensional bag inner packaging machine and outer bag packaging machine can be used separately, flexible use, practicality

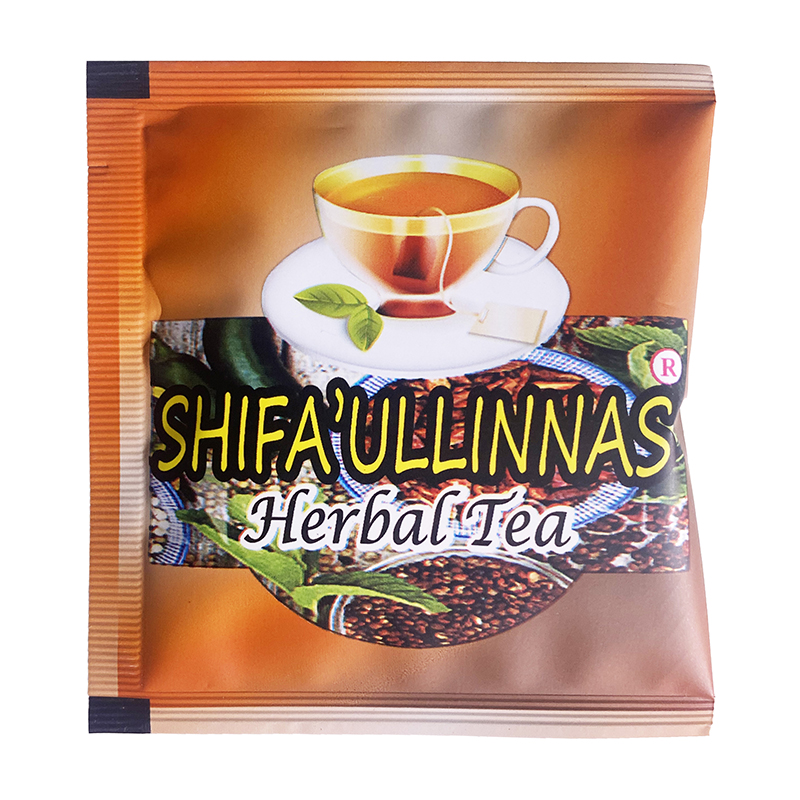

7. The outer bag is packaged with heat-sealed composite material. The pattern can be customized according to customer requirements, and automatic cutting and positioning can be achieved.

8. Nitrogen-filled devices can be added to extend product retention and freshness

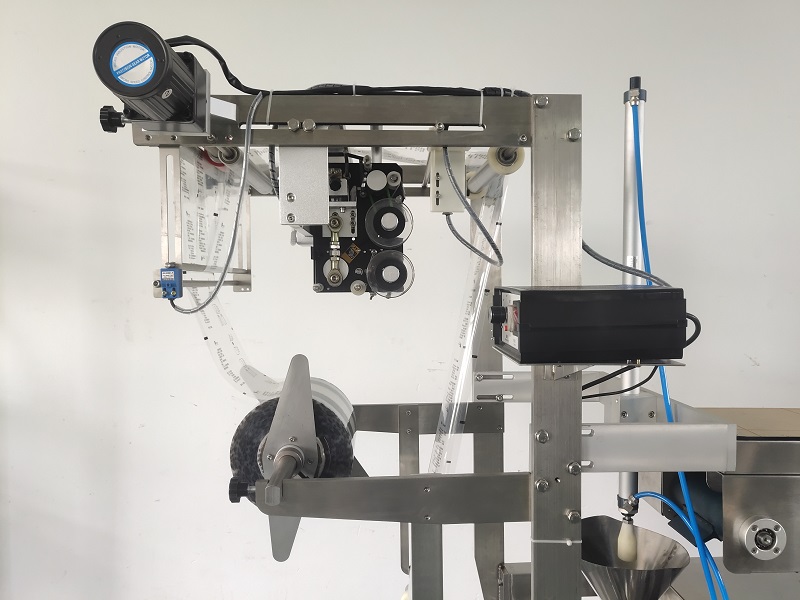

9. Configurable production date random printing device to make production more standardized and consumer use more secure

product DETAILS

Product parameters

Item	technical standard
Measurement range	1-10g
Measurement accuracy	±0.2g（according to material)

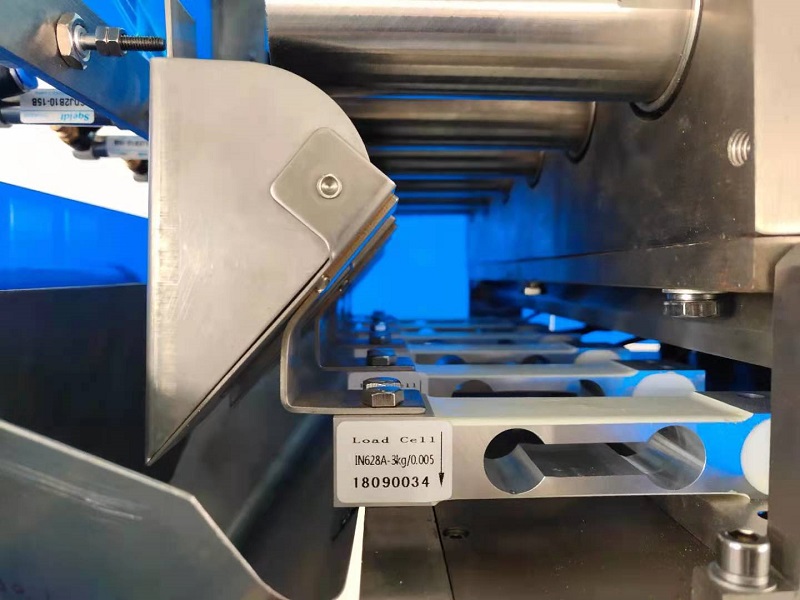

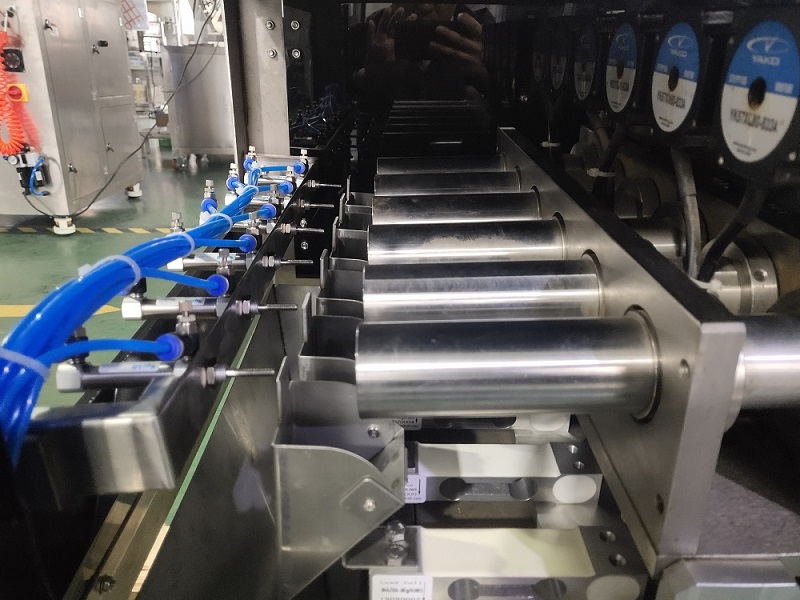

Measurement method	6 sets quantitative scale
Packaging speed	35-45bag/min
Packing method	Pyramid bag: ultrasonic three-side sealless packaging Envelope Bag: Composite Heat Sealed Trilateral Seal/Back Seal Package
Packing size	Pyramid bag：120mm (4850 mm) Envelop Bag：≥ 8095 mm Pyramid bag：140mm (5860 mm) Envelop Bag：≥ 80105 mm Pyramid bag：160mm ( 6870 mm) Envelope Bag：≥ 90110 mm
Packaging material	Pyramid bag：nylon、non woven、PLA mesh Envelp bag：Heat sealable composites
Material specification	Pyramid bag：120 mm 、140 mm 、160 mm envelop bag：≥ 160 mm

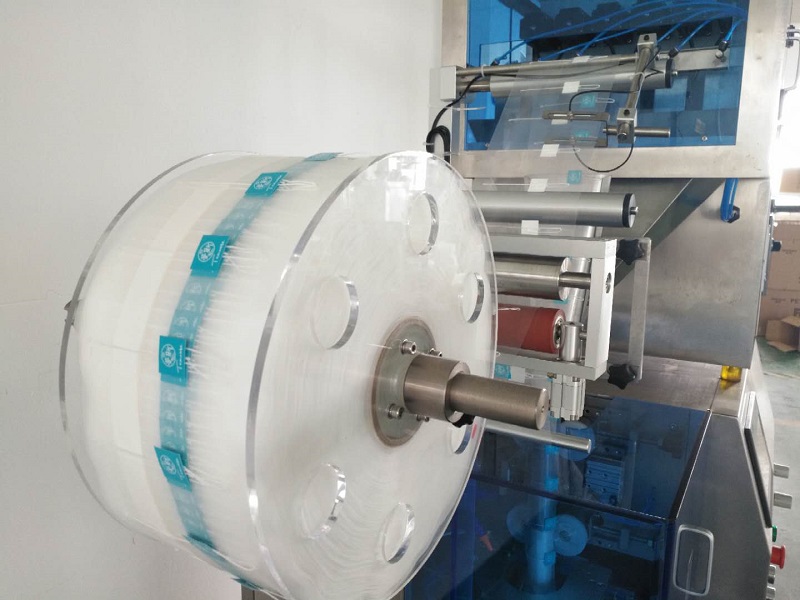

Unwinding quantity	2roll
Unwinding diameter	≤ Φ 400 mm
Inside of paper roll	Φ 76 mm
Air pressure	≥ 0.6Mpa
power	3.2 Kw

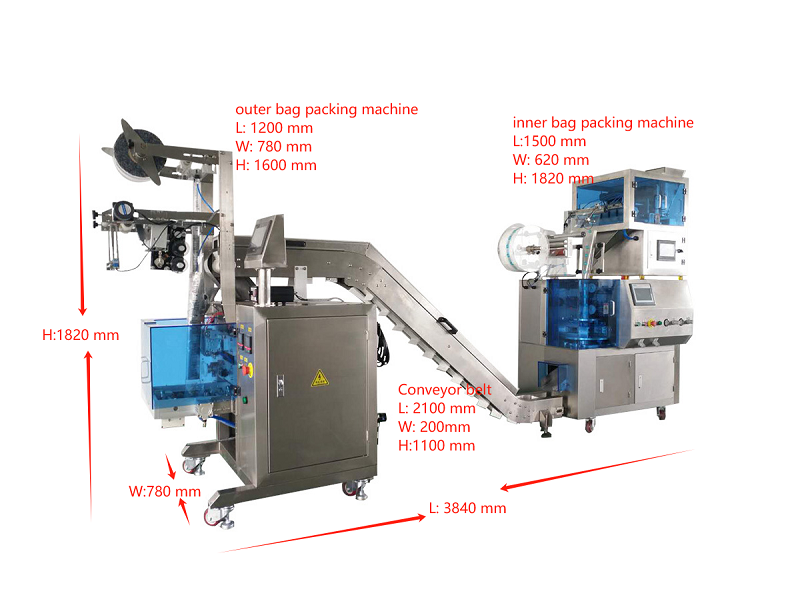

Machine Dimension	Pyramid machine(LWH): 1600* 800 1900 mm Envelope machine(LWH): 3000 950 *1700 mm
Machine weight	950 Kg
