Drip Coffee Bag Packing Machine

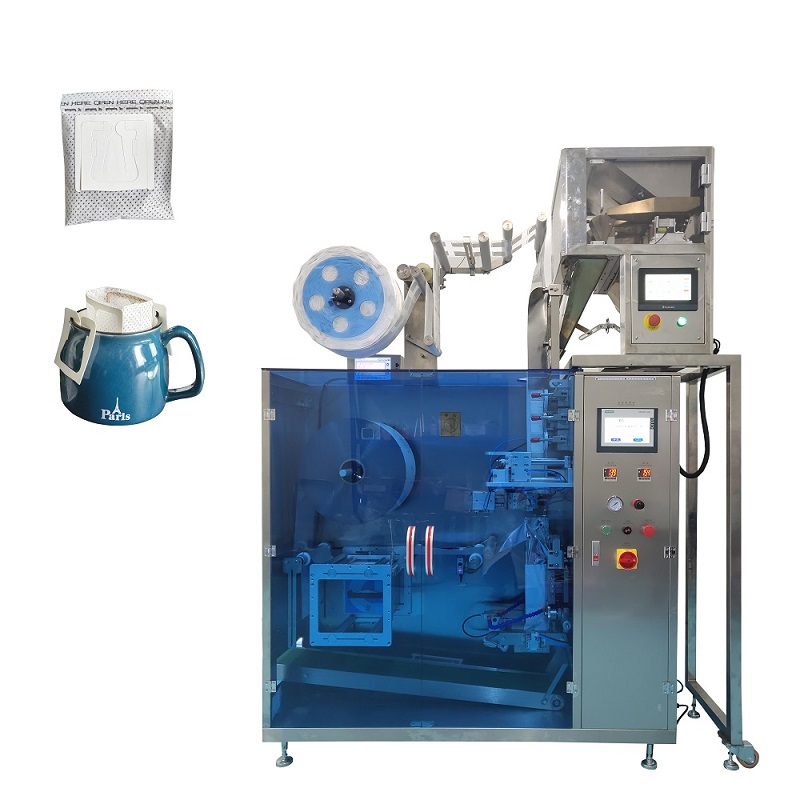

Drip coffee inner&outer bag packing machine Model HDP-188
product description
1.Electronic scale measurement: High-precision electronic scale, pre-bag measurement to ensure consistent weight of each coffee bag
2.Electronic scale measurement: High-precision electronic scale, pre-bag measurement to ensure consistent weight of each coffee bag
3.Inner bag film rolling shaft: reasonable film feeding structure, automatic film feeding and smooth film transportation
4.Ultrasonic sealing: The sealing is firm and does not generate temperature. The material in the inner bag is not affected by temperature and has a longer shelf life.
5.Outer bag film transport axis: reasonable bag making structure, smooth bag making, coordinated film pulling process, not easy to shift
6.Digital coder: fully automatic and intelligent, accurate coding without missing codes
Plastic sealing device: Customization can be switched with one click, it can be sealed on three sides
Adopt the special drip filter bag with three-sides sealing, which can be directly hung against the cup edge to have a better brewing effect, moreover, the neat bag shape is a high fashion in the overseas markets.
The Drip coffee inner &outer bag packing machine integrates automatic function, such as bag making, measuring, filling, sealing cutting, counting, batch number printing and other functions.

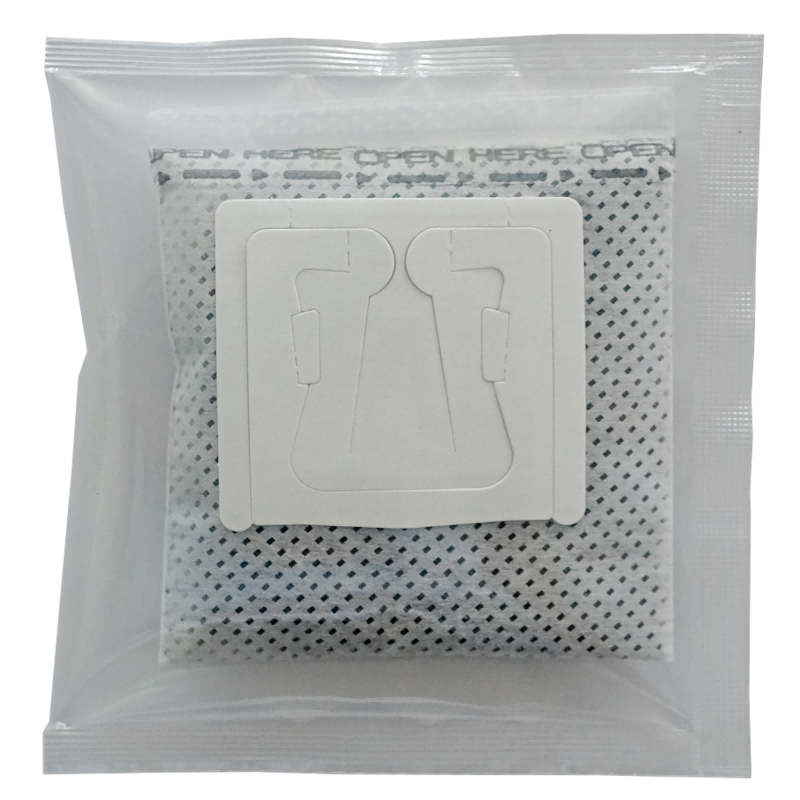

The drip inner bag made of non-woven fabric, guarantees covenient and hygienic brewing. The sealing adopts the advanced ultrasonic sealing, perfect sealing and beautiful bag type.
Packing material：filter paper, composite membrane, nylon, corn fiber(Food grade)，drip fitter bag.
Sealing Type:Three sides sealing
Product parameters
Model |
HDP-188 |
Inner bag size : |
(L):70-90 mm (W)：90-100 mm |
Outer bag size |
(L)：90-120 mm (W)：100-120 mm |
|
Packing speed
|
60 -80bags / min |
Measuring range |
5-15g |
Total Power |
AC220V / 50 - 60Hz / 3.7kw |
Machine weight |
660kg |
|
Machine size (L*W*H) |
1210 * 830 * 2140 mm
|
Gas source |
≥0.6m³ / min |
